Ocreeb-12

A side project that became my daily driver at the office. It turns heads, and it earns its spot on the desk.

Ocreeb-12

Build log (05)

Newest first
  1. Build complete
    Sep 2023#05

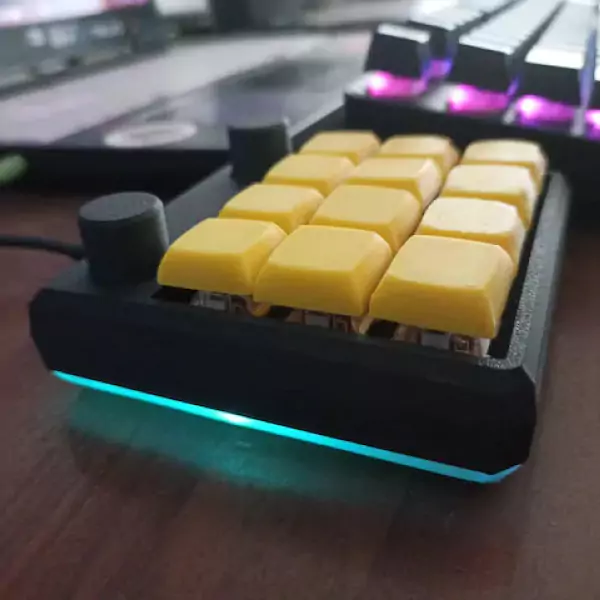

    Build complete

    Flashed the QMK firmware and mapped the bindings.

  2. Assembly complete, with 3D printed keycaps
    Sep 2023#04

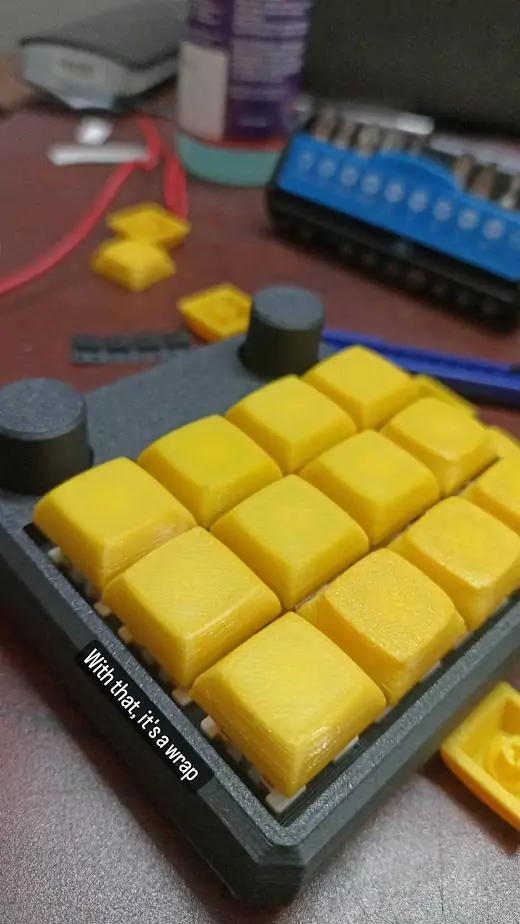

    Assembly complete, with 3D printed keycaps

  3. All the electronics arrive and assembly starts
    Sep 2023#03

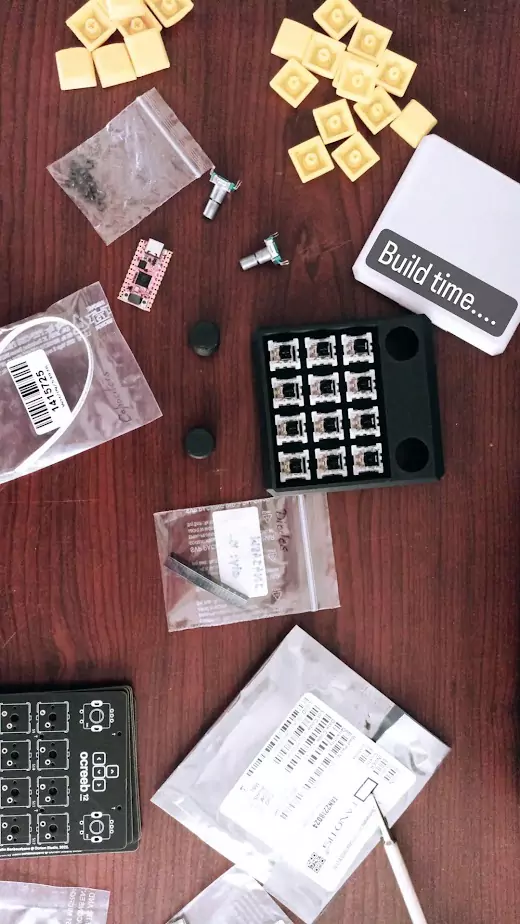

    All the electronics arrive and assembly starts

    A whole lot of diodes, capacitors, resistors, LEDs and switches to solder.

  4. 3D prints and Otemu black switches
    Sep 2023#02

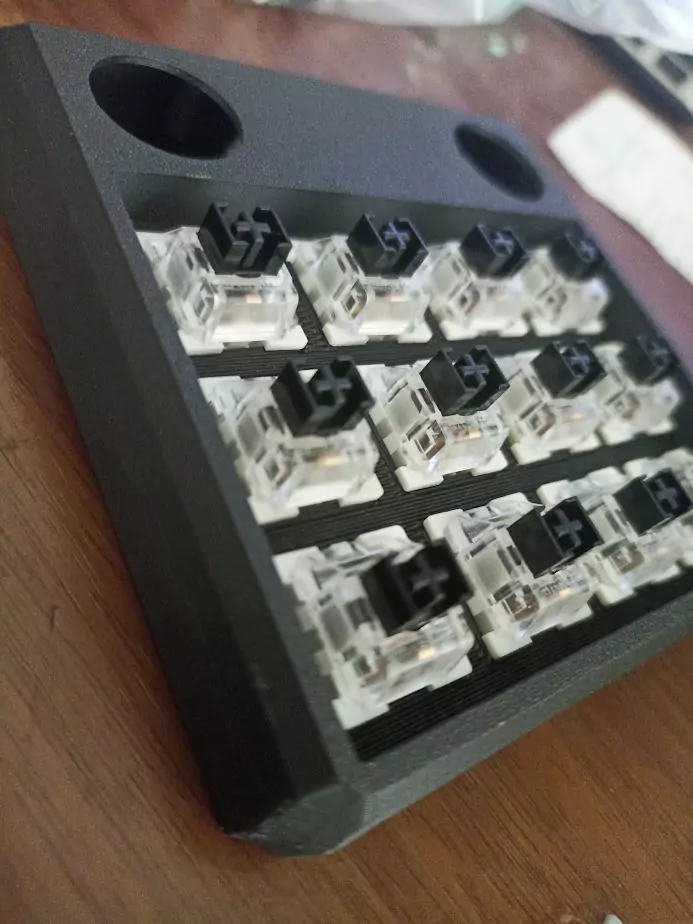

    3D prints and Otemu black switches

    This is a DIY macropad, so the case needs to be 3D printed.

  5. PCBs manufactured
    Sep 2023#01

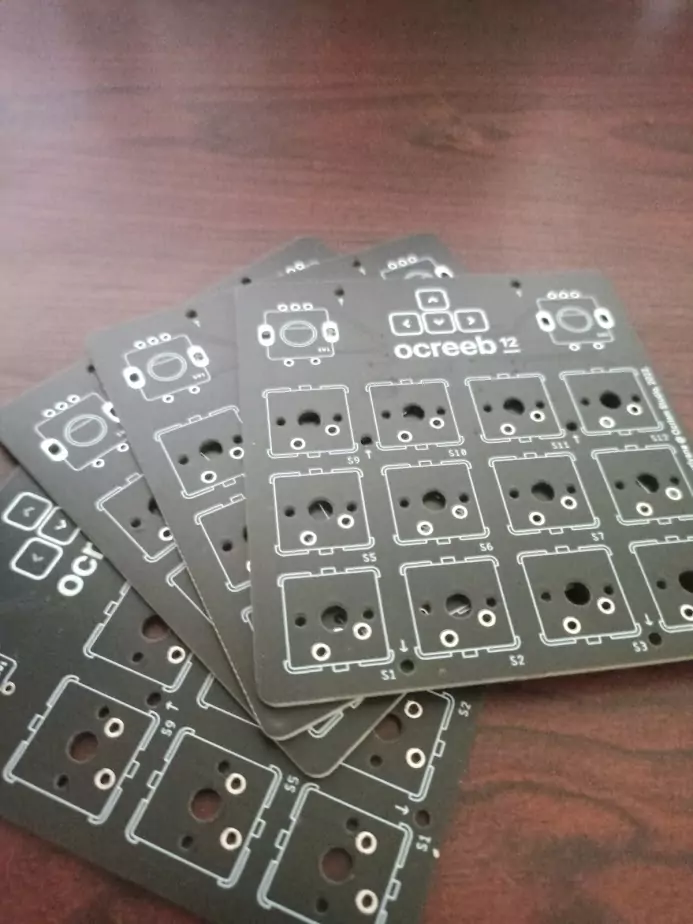

    PCBs manufactured

    This macropad means soldering SMD components to a PCB.
